Competition landing area high jump

IAFF Certificate No. E-17-0913


Landing area

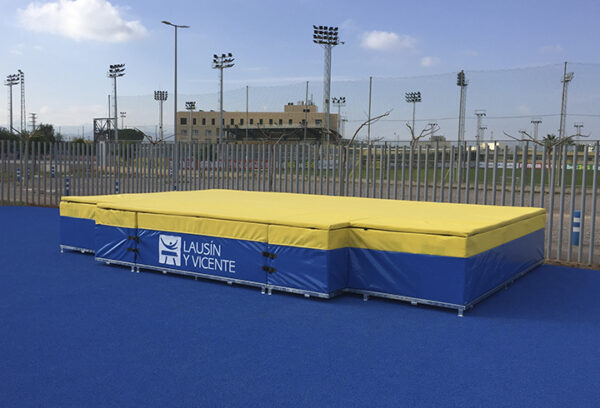

Landing area 6000x4000x700 mm, designed and manufactured in compliance with WA international athletics regulations.

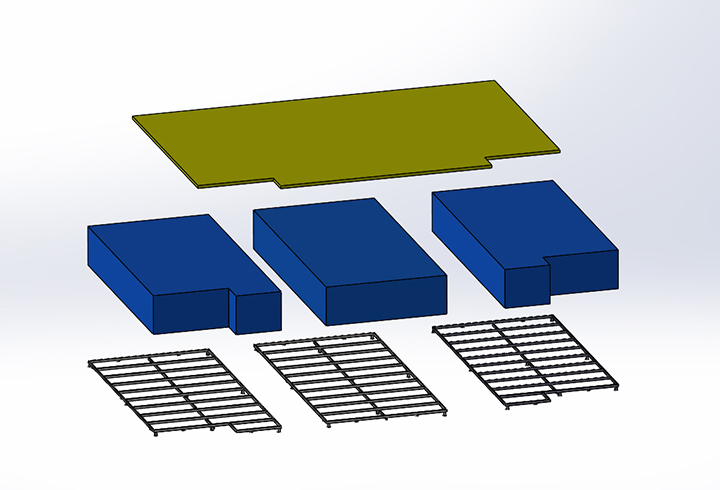

The set is made of three independent blocks manufactured in 20 SS density polyurethane, forming air chambers inside it and lined with a laminated canvas cover. The modules are joined by nylon straps and are covered by a special spike proof canvas mattress. The shape of the modules enables the positioning of high jump measuring devices in the lateral spaces.


Steel tube support platform

Steel tube support platform for 6000x4000 mm landing area, manufactured in 40x20 mm galvanised steel tubing. Divided into three independent areas for easy transport and assembly. The metal structure is deployed to a full height of 100 mm by metal feet welded to the structure, to prevent water from the ground coming into contact with the landing area.


Weather cover

Cover made of laminated canvas covered with PVC. Essential to protect the outside landing area. It is equipped with a fixing system to the landing area avoiding that it is blown away in the wind. This reference is for the 6000x4000x700 mm landing area. The canvas is available in blue.
