Electronic scoreboard: football/rugby

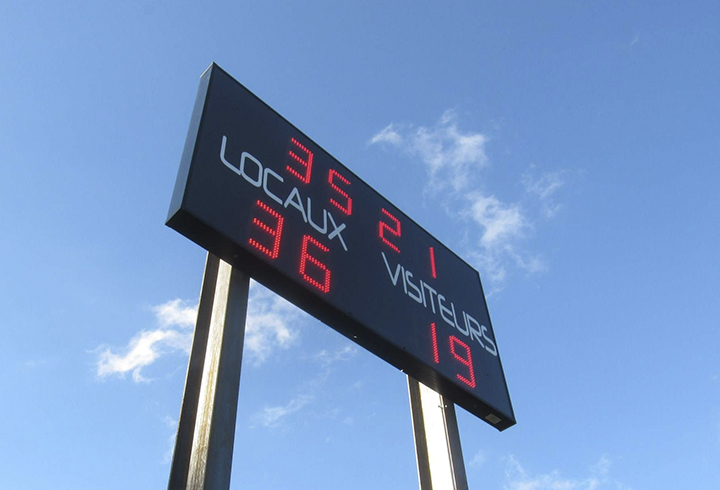

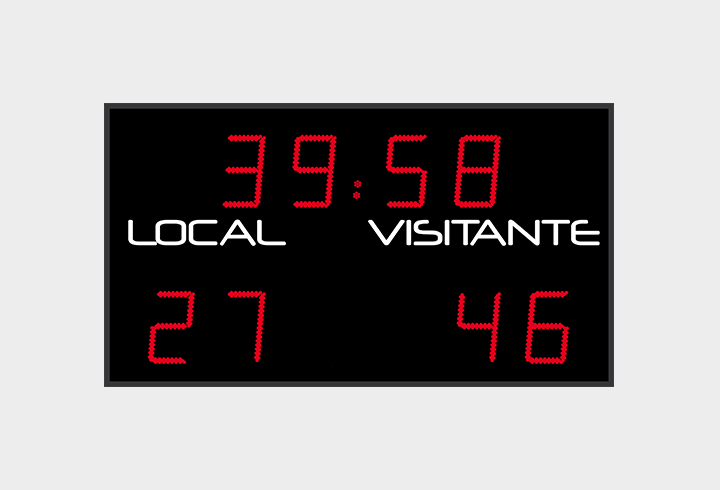

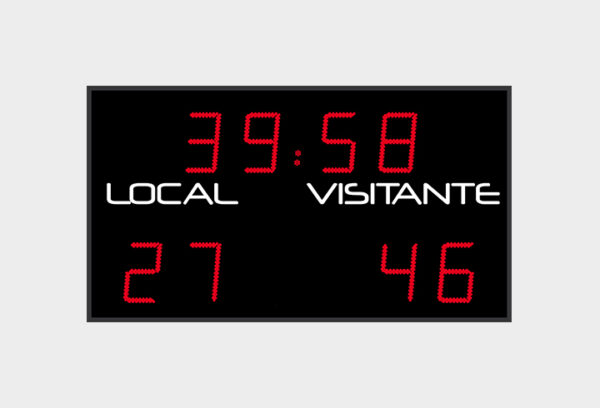

Electronic scoreboard deigned and built to work outdoors. Measures: 1800 x 1000 x 90 mm. Unpackaged weight: 34 kg. Comes with 4 x 25 cm tall red digits + blinking dots for the time and 2 + 2 digits for the score. The size and fluorescent colour provides for good visibility at 120 metres and from a 160º viewpoint. The digits are protected by a transparent non-reflective sheet of polycarbonate – strongly impact-resistant and excellent performance under UV radiation. SCOREBOARD FUNCTIONS Time in play (in minutes/seconds). Home/visiting team’s score (from 0 to 99). Works as a clock when not otherwise in use. The digits are distributed as follows: 2 for the goals/points for the home team; 2 for the away team; and 4 giving the minutes and seconds in play. It is controlled from a console which is connected to the scoreboard via a radio communication system. The console has an attractive ergonomic design, which is both light and highly durable. An anchor system is supplied with the scoreboard to affix it to a wall. It can also be anchored to the ground by means of an auxiliary structure (not included). Radio-based outdoor mode: 230 V/50-60 Hz, 0.28 A. Max. consumption: 66 VA. Works off a 5 m sector cable. Console: 340 x 175 x 60 mm; with LCD screen with 2 lines of 20 characters 9 mm tall; case for the console: 360 x 260 x 90 mm; charger to maintain power in the console when not in use (16 hrs use before need to recharge). Includes USB port for updates and PC connection. Programmed for various sports: football, rugby and hockey; includes programming for the different time periods and a chronometer. The standard model works via radio. Optional special kit for use with cables. M.99.56 (not included). Home” and “Visitors” can be inscribed in any language upon request. See other indoor models for different features and sizes. Price per unit.

Ref. M.99.012-0 Categories ,
